| Sản Phẩm | Mainboard |
| Thương hiệu | MSI |

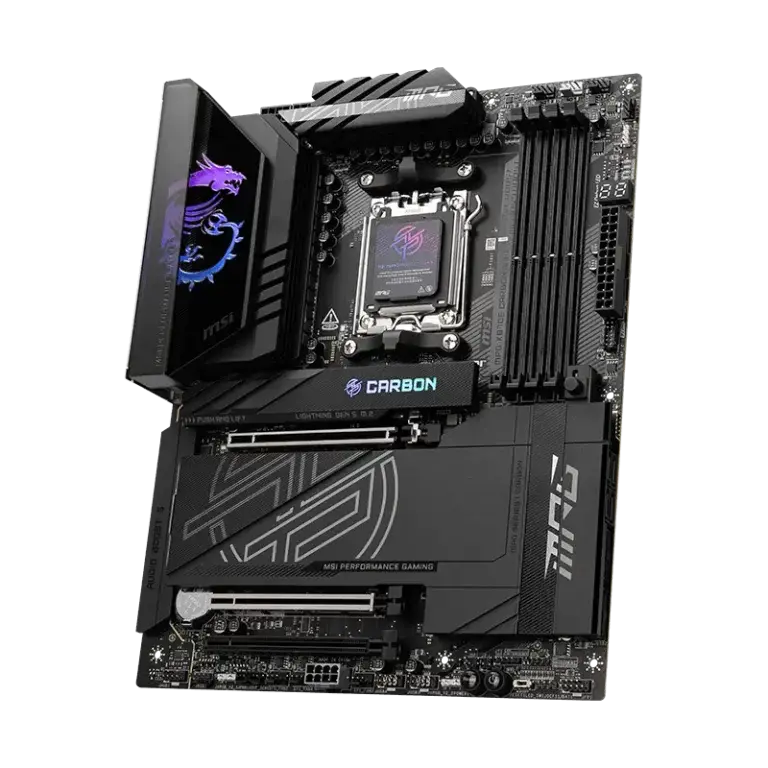

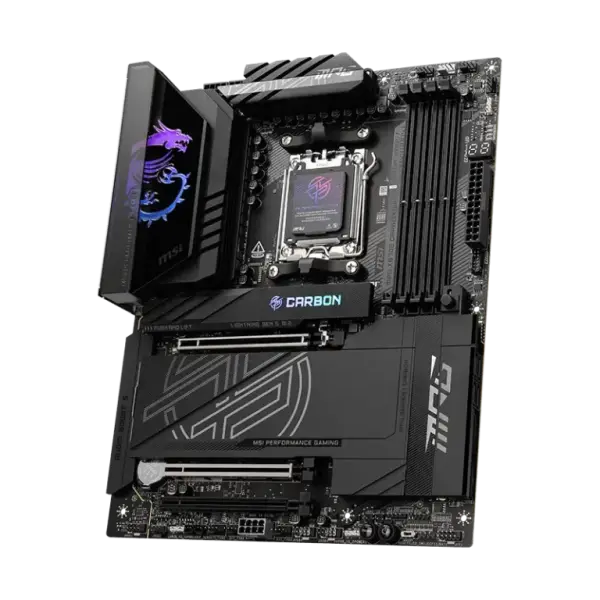

| Model | MPG X870E CARBON WIFI |
| Chipset | AMD X870E |
| Hỗ trợ CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Bộ nhớ | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8400+(OC)/ 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only |
| Đồ họa | 1x HDMI™ Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz |
| Khe mở rộng | 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x4 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 & PCI_E2 slots • Supports PCIe 5.0 x16/x0 or x8/x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8/x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4/x0 (For Ryzen™ 8500/ 8300 Series processor) PCI_E3 slot • Supports up to PCIe 4.0 x4 |
| Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
| RAID | •Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices •Supports RAID 0, RAID 1 and Raid 10* for M.2 NVMe storage devices |
| Audio | Realtek® ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-Bit/384 kHz playback on front panel Supports S/PDIF output |
| LAN | 1x Realtek® 8126 5G LAN 1x Realtek® 8125 2.5G LAN |
| Wifi/ Bluetooth | Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM |
| Cổng kết nối nội bộ | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| Cổng kết nối sau | 9x USB 10Gbps Type-A Flash BIOS Button Clear CMOS Button Smart Button 1x 2.5G LAN 1x 5G LAN Audio Connectors 1x HDMI™ 2x USB 40Gbps Type-C 2x USB 10Gbps Type-C Wi-Fi / Bluetooth Optical S/PDIF Out |
| OS | Support for Windows® 11 64-bit |
| Kích thước | ATX 243.84mmx304.8mm |
