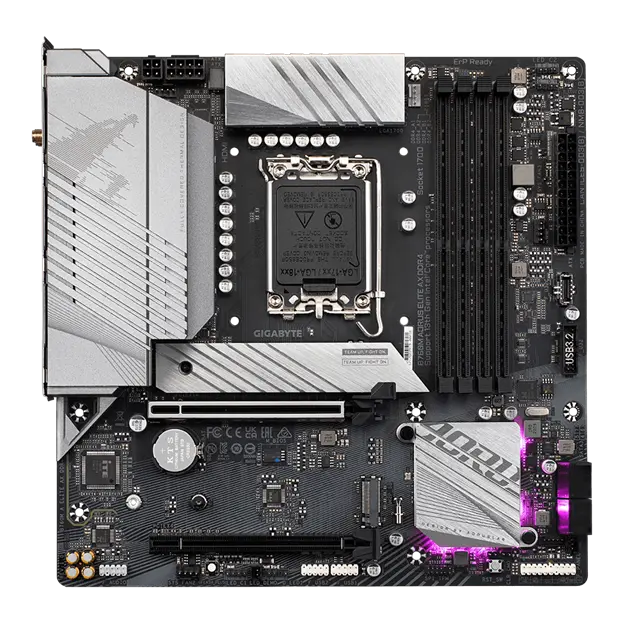

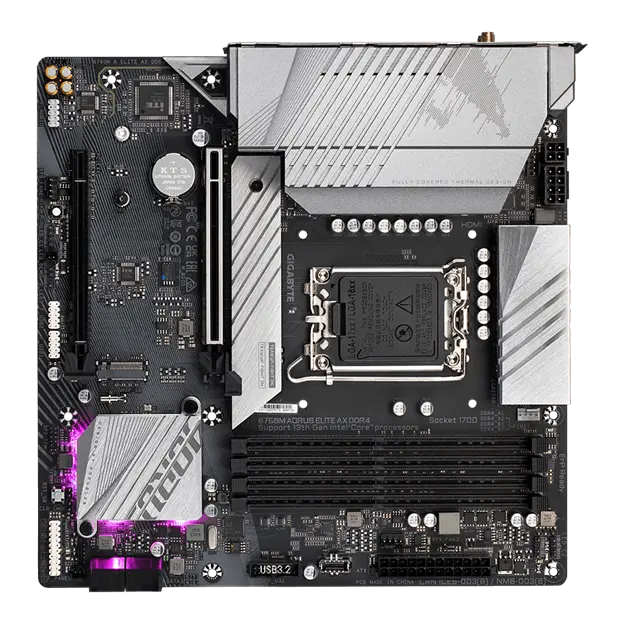

MAINBOARD GIGABYTE B760M AORUS ELITE AX DDR4

1. LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

1. Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules

2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

3. Dual channel memory architecture

4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

6. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

Integrated Graphics Processor-Intel® HD Graphics support:

1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
   * Support for HDMI 2.0 version and HDCP 2.3.

2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
   * Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)

1. Realtek® Audio CODEC

2. High Definition Audio

3. 2/4/5.1/7.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

4. Support for S/PDIF Out

1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Intel® Wi-Fi 6E AX211

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

2. BLUETOOTH 5.3

3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

(Actual data rate may vary depending on environment and equipment.)

CPU:

1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Support for AMD CrossFireX™ technology

CPU:

1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

2. 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Chipset:

1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support

2. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header

3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

4. 1 x USB 3.2 Gen 1 port on the back panel

5. 4 x USB 2.0/1.1 ports available through the internal USB headers

Chipset+USB 3.2 Gen 1 Hub:

1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Chipset+USB 2.0 Hub:

1. 4 x USB 2.0/1.1 ports on the back panel

1. 1 x 24-pin ATX main power connector

2. 1 x 8-pin ATX 12V power connector

3. 1 x 4-pin ATX 12V power connector

4. 1 x CPU fan header

5. 3 x system fan headers

6. 2 x addressable LED strip headers

7. 2 x RGB LED strip headers

8. 2 x M.2 Socket 3 connectors

9. 4 x SATA 6Gb/s connectors

10. 1 x front panel header

11. 1 x front panel audio header

12. 1 x USB Type-C® header, with USB 3.2 Gen 2 support

13. 1 x USB 3.2 Gen 1 header

14. 2 x USB 2.0/1.1 headers

15. 2 x Thunderbolt™ add-in card connectors

16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

17. 1 x Q-Flash Plus button

18. 1 x reset button

19. 1 x reset jumper

20. 1 x Clear CMOS jumper

1. 2 x SMA antenna connectors (2T2R)

2. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support

3. 1 x USB 3.2 Gen 2 Type-A port (red)

4. 3 x USB 3.2 Gen 1 ports

5. 4 x USB 2.0/1.1 ports

6. 1 x HDMI port

7. 1 x DisplayPort

8. 1 x RJ-45 port

9. 1 x optical S/PDIF Out connector

10. 2 x audio jacks

1. iTE® I/O Controller Chip

1. Voltage detection

2. Temperature detection

3. Fan speed detection

4. Water cooling flow rate detection

5. Fan fail warning

6. Fan speed control
   * Whether the fan speed control function is supported will depend on the fan you install.

1. 1 x 256 Mbit flash

2. Use of licensed AMI UEFI BIOS

3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for GIGABYTE Control Center (GCC)
   * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

2. Support for Q-Flash

3. Support for Q-Flash Plus

1. Norton® Internet Security (OEM version)

2. LAN bandwidth management software

1. Support for Windows 11 64-bit

2. Support for Windows 10 64-bit

1. Micro ATX Form Factor; 24.4cm x 24.4cm
